Description
TMDS series central material distribution station plays its role in distributing raw materials to each storage hopper. This central distribution station is designed with quick couplings for easy assembly and disassembly. It’s made of stainless steel, preventing the raw materials from being contaminated. Five dimensions are available with this central distribution station.

Features
1. Flexible quick coupling design facilitates assembly and disassembly.
2. This material distribution station features durability and longevity.
3. Our central distribution station is made of made of stainless steel, preventing the raw materials from being contaminated.

Application
This central distribution station of the feeding system is usually used together with vacuum suction machine.

Technical Parameter

Model	Pipe Dia. (inch)	Dimensions (mm)
TMDS-2 × 2	1.5	657 × 440 × 330
	2
	2.5
TMDS-3 × 3	1.5	1056 × 600 × 450
	2
	2.5
TMDS-4 × 4	1.5	1250 × 920 × 730
TMDS-2 × 2	2
TMDS-2 × 2	2.5
TMDS-5 × 5	1.5	1350 × 1160 × 930
TMDS-2 × 2	2
TMDS-2 × 2	2.5
TMDS-6 × 6	1.5	145 × 140 × 1138
	2
	2.5

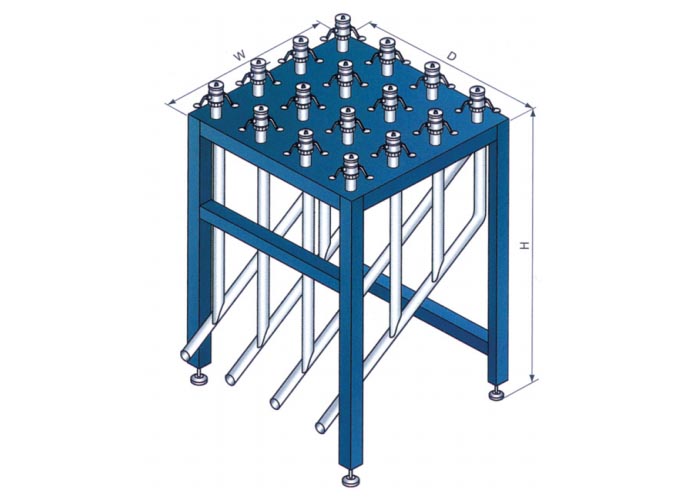

Outline Drawing
