Description

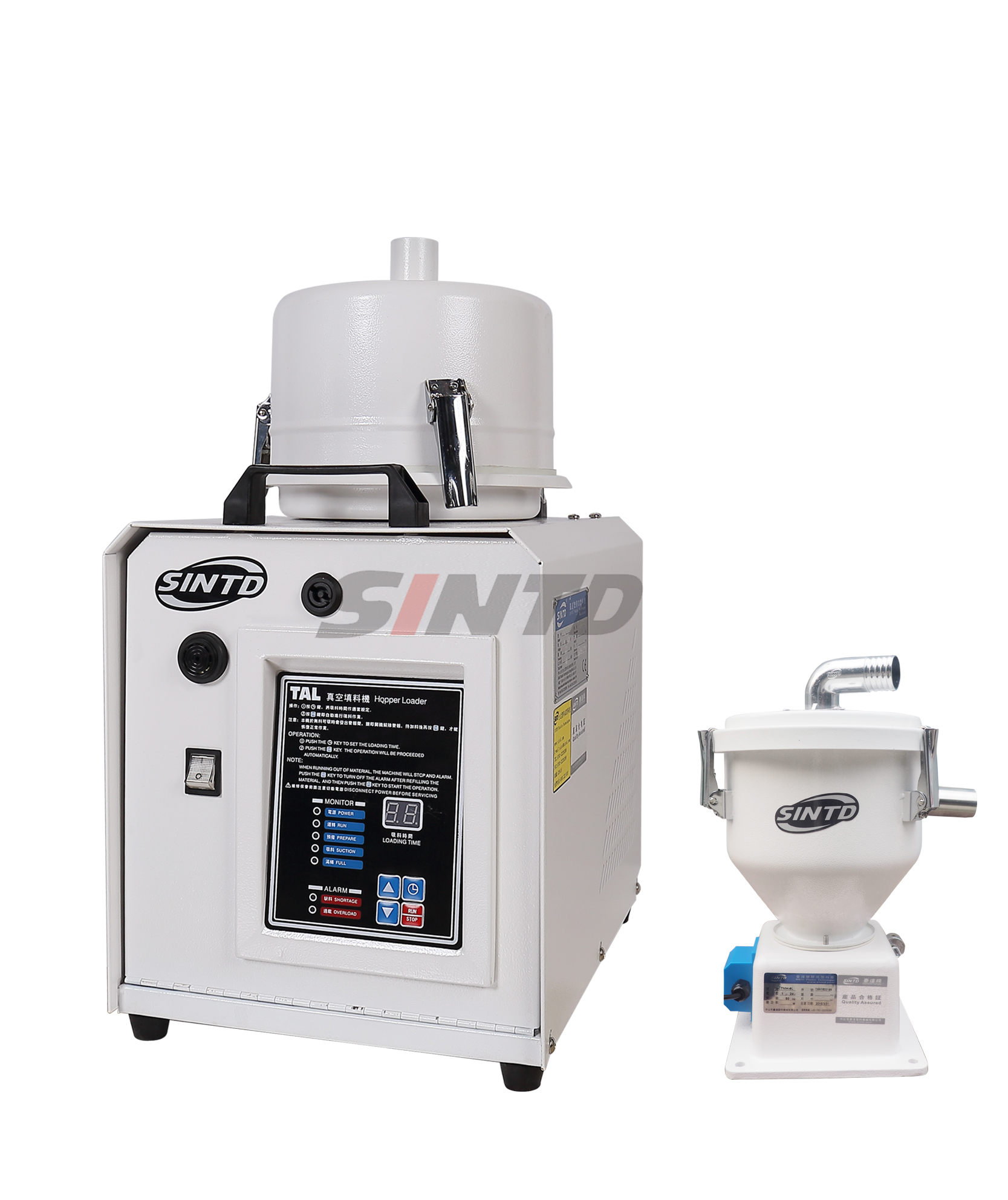

TAL-700G/800G/900G separated vacuum hopper loader is ideal for long-distance conveying of raw materials. Separated design helps satisfy multiple requirements of customers. All models of these stainless steel hopper loaders use stainless steel to avoid contamination to materials. Our separated vacuum hopper loader is also featured by high-pressure blower with high efficiency, motor overload protection function and automatic warning when lack of materials. These functions allow extended service life of the stainless steel hopper loader, along with characteristics such as light weight, convenient installation, ease of operation, etc.

Features
1. Separation of the main unit and the hopper helps satisfy various requirements of customers.
2. Stainless steel hopper of our separated vacuum hopper loader prevents the raw materials from contamination.
3. Precise microcomputer control of the stainless steel hopper loader brings ease of operation. A number of alarming lights are set.
4. Motor protection device helps extend the service life of motor.
5. Alarm when lack of materials makes it easier for operators to respond in time.
6. Independent filter device of this separated vacuum hopper loader facilitates dust removal.
7. Vacuum hopper (TMH) can be mounted directly on the hopper of moulding machine, and photosensor hopper can be mounted directly on the feed inlet of moulding machine.
8. Inspection window of filter facilitates operators to check the conditions of filter and clean it regularly.
9. Optional cyclone dust collector helps reduce the cleaning time of filter, suitable for material conveying and transporting.
10. Optional proportional valve can be used to mix new materials and crushed materials, or immediate recovery of crushed materials.

Specifications

Main Pump					Hopper			Net Weight (kg)	Conveying Pipe Dia. (inch)	Conveying Capacity (kg/hr)
Model	Motor Type	Motor Power	Dimensions (H × W × D) (mm)	Net Weight (kg)	Recommended Model	Capacity (L)	Dimensions (H × W × D) (mm)
TAL-700G	Carbon brush	1.15 (1φ)	710 × 540 × 390	18	TMH-6L	6	450 × 260 × 300	6	1.5	300
					TVH-6L		585 × 260 × 330	7
TAL-800G	Inductive	0.85 (3φ)	370 × 620 × 420	40	TMH-6L	6	450 × 260 × 300	6	1.5	300
					TVH-6L		585 × 260 × 330	7
TAL-800G2	Inductive	1.6 (3φ)	370 × 620 × 420	47	TMH-12L	12	530 × 310 × 350	7	1.5	500
					TVH-12L		680 × 310 × 350	10
TAL-900G	Inductive	0.85 (3φ)	620 × 365 × 600	50	TMH-6L×1	6	450 × 260 × 300	6	1.5”	500
					TVH-6L×1		585 × 260 × 300	7
					TMH-6L×2		450 × 260 × 300	6
					TVH-6L×2		585 × 260 × 300	7
TAL-900G2	Inductive	1.6 (3φ)	680 × 375 × 740	56	TMH-12L×1	12	530 × 310 × 350	7	1.5	700
					TVH-12L×1		680 × 310 × 350	10
					TMH-12L×2		530 × 310 × 350	7
					TVH-12L×2		680 × 310 × 350	10
